| Style Code : HYD-322B | Driver : Isolated flicker free driver |
| Power : 12W | Supply Voltage : 220V-240V |
| CCT : 3000K / 4000K / 6500K | Supply Frequency : 50-60Hz |
| Dimension : Ф90*70mm | Supply Current : 0.18A Max |
| Cut out : Ф82mm | Power Factor : >0.5 |
| Material : Die-casting Aluminum | LED Driver Current : 300mA |
| Diffuser : PMMA | LED Driver Voltage : 30-42V |
| Installation Method : Recessed | LED Driver Efficiency : ≥83% |
| Protection Grade : IP20 | SDCM : <5 CRI : >80 |
| Warranty : 5 yeas | LED Model : COB |
| Work Temperature : -10-45℃ | Luminous Flux : 1119lm |
| Storage Temperature : -25-60℃ | Max Luminous Intensity: 4172cd |
| Beam Angle : 23.8° | |
| Luminous Efficacy : 87lm/W |

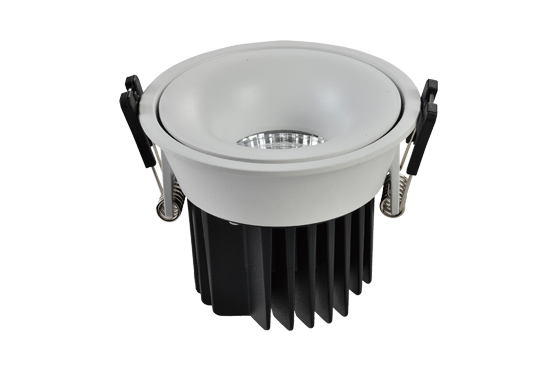

HYD-322B
