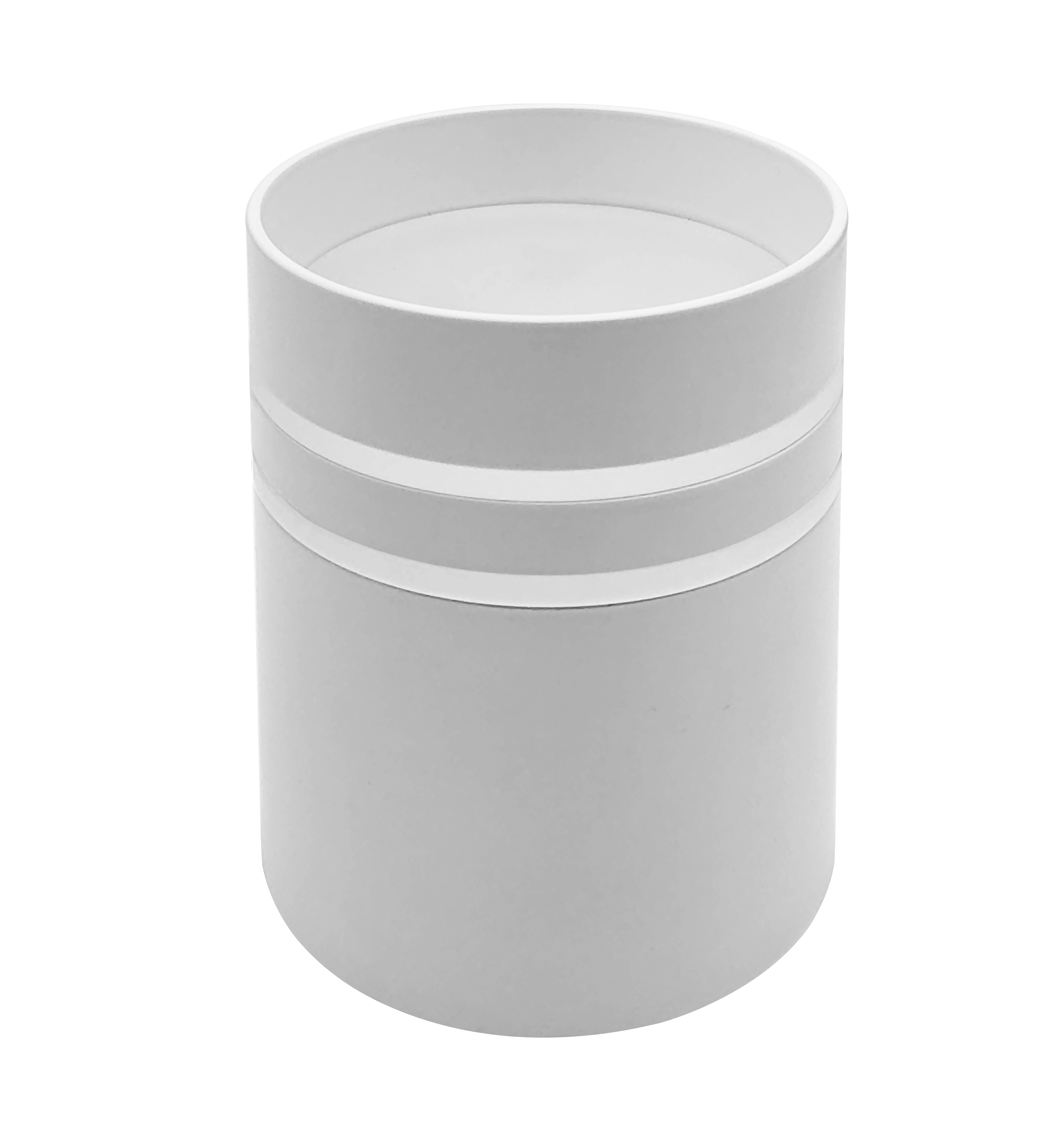

Product Feature
-PMMA: good light transmission performance, high stability, service life >10 years
-Die-cast aluminum: the lamp body is not easy to oxidize and rust, good heat dissipation, solid and stable
-Surface mounted design, no holes, no damage to the ceilingApplication
-Library
-School
-Shop
-aisle
-restaurant
-Show room
| Style Code : HYD-226E | Driver : Built in driver |
| Power : 10W | Supply Voltage : 220V-240V |
| CCT : 3000K / 4000K / 6500K | Supply Frequency : 50-60Hz |
| Dimension : Ф80*100mm | Supply Current : 0.18A Max |
| Cut out : N/A | Power Factor : 0.55 |
| Material : Die-casting Aluminum | LED Driver Current : 300mA |
| Diffuser : PMMA | LED Driver Voltage : 176-280V |
| Installation Method : Surface mounted | LED Driver Efficiency : ≥83% |
| Protection Grade : IP20 | SDCM : <5 strong="">CRI : >80 |
| Warranty : 5 yeas | LED Model : 226E-10W |

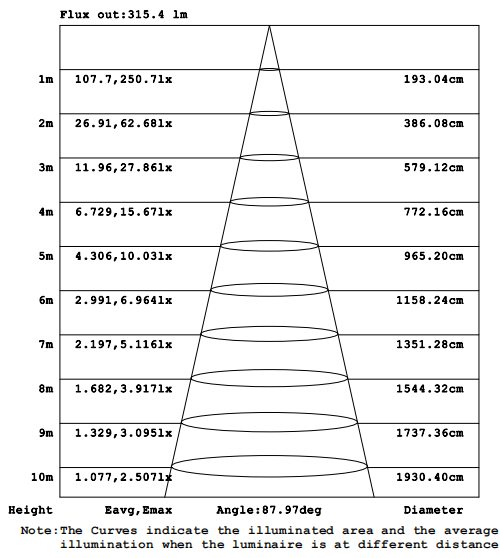

| Work Temperature : -20-60℃ | Luminous Flux : 642 lm |
| Storage Temperature : -25-60℃ | Max Luminous Intensity : 248 cd |

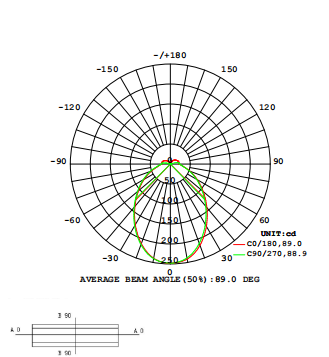

| Beam Angle : 89 ° | |
| Luminous Efficacy : 67 lm/W |
HYD-226E-10W-3000K IES
HYD-226E
Download File
